Wings Machinery
Wings Machinery

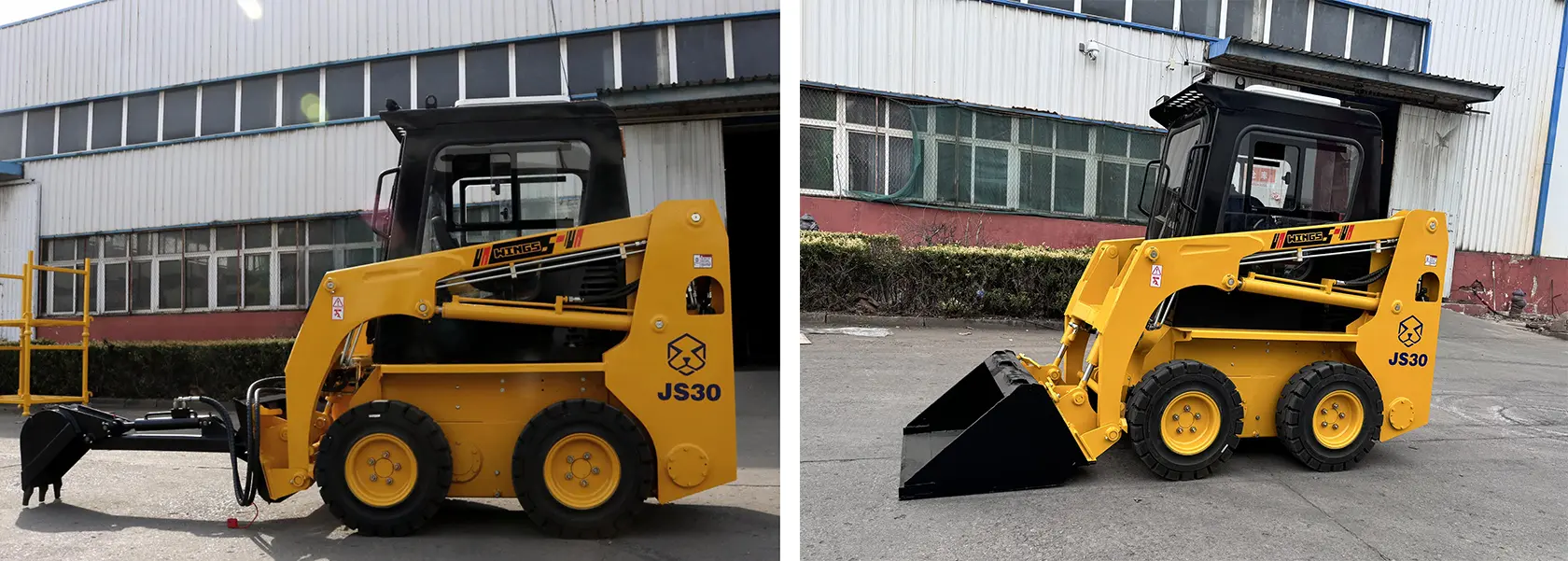

Model: JS30 Skid Steer Loader
Total Weight: 1,300kg
Bucket Capacity: 0.19m³
Engine: Kubota diesel engine, 18.2kw
Flex Steering: 360° in-place rotation for maneuvering in tight spaces and minimizing collision risks.

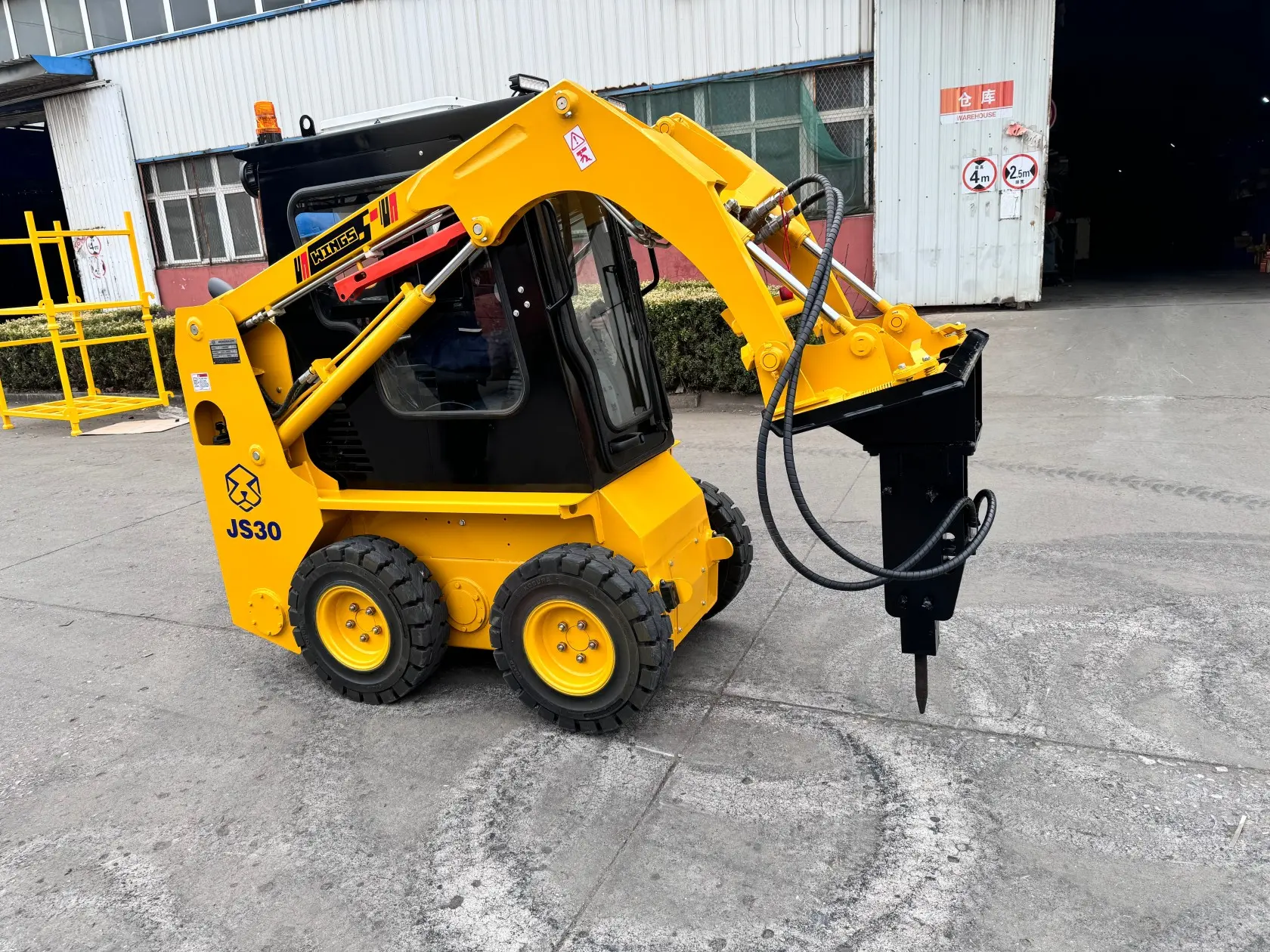

Multi-Tools: Compatible with 100+ attachments including buckets, drills, and breakers for versatile operations.
Ideal for repairing road surfaces, unclogging storm drains, and efficient snow removal from streets.
Precision unloading of feed and grain. Effectively handles straw bales and barn cleaning with sweepers and grabbers.
Equipped for transplanting trees, digging pits with augers, and clearing shrubs with brush cutters.
| Technical Specifications | |||
|---|---|---|---|
| Performance | Model | - | JS30 |
| Rated Operating Capacity | kg | 380 | |
| Tipping Load | kg | 760 | |
| Bucket Capacity | m³ | 0.19 | |
| Operating Weight | kg | 1300 | |
| Max. Travel Speed | km/h | 9 | |
| Dimensions | Overall Dimensions | mm | 2959 × 927 × 1900 |
| Height To Bucket Hinge Pin | mm | 2642 | |
| Width With Bucket | mm | 927 | |
| Wheelbase | mm | 801 | |
| Dumping Height | mm | 1933 | |
| Engine | Brand | - | Kubota |
| Net Power | KW/rpm | 18.2 / 3000 | |
| Displacement | L | 1.1 | |
✅ Operational Versatility: Seamlessly transitions between buckets, augers, and forks, excelling in farms and narrow urban alleys.
✅ Reliable & Sturdy: Engineered with reinforced structures for sustained high-intensity cycles and precision productivity.
✅ Performance & Agility: Compact design built for worksite efficiency in tight spaces without compromising power.
