Cheap Skid Steer Loader Rated Load 850kg Manufacturer, Supplier

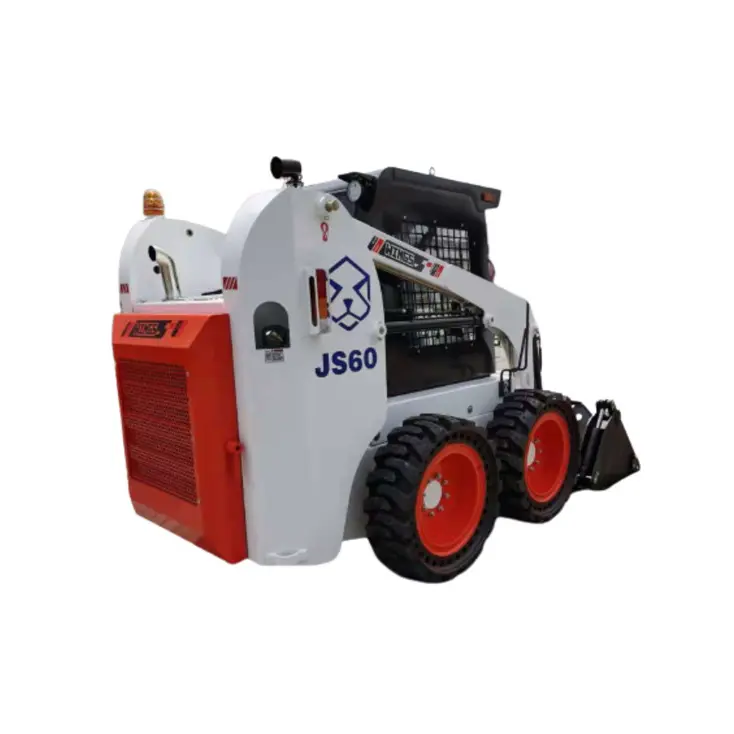

The WINGS JS60 integrates a 45kW Xinchai engine and 850kg payload into its compact chassis. Equipped with a enclosed cab, 360Â°rotating platform, and enhanced stability control, this agile workhorse transitions between attachments seamlessly for construction, urban landscaping, and ultra-confined space operations. Â

Send Inquiry

Product Description

⚙️ Key Features

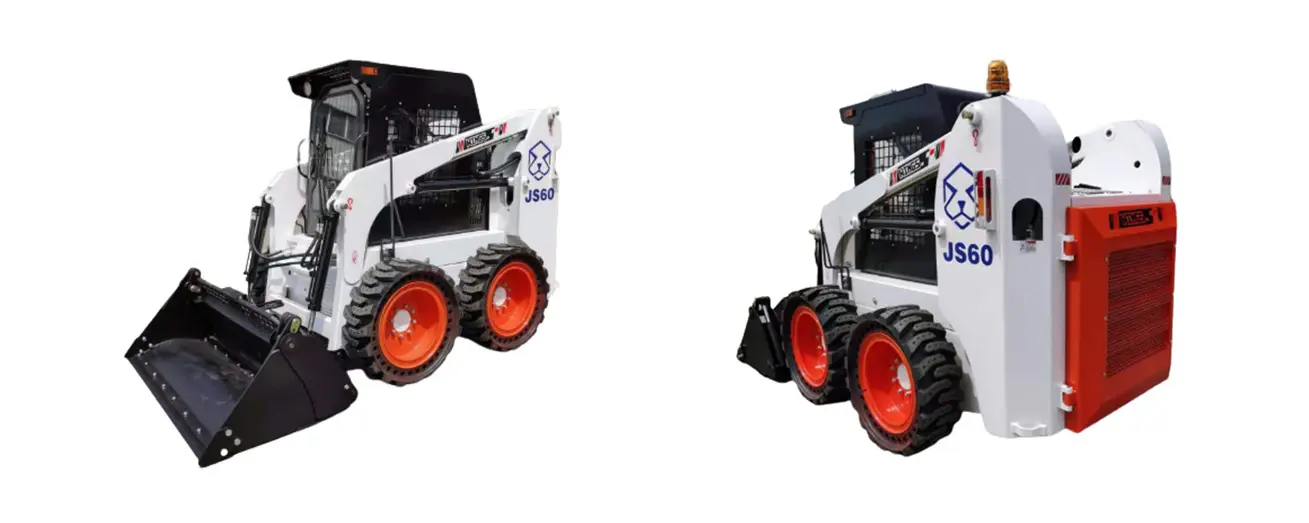

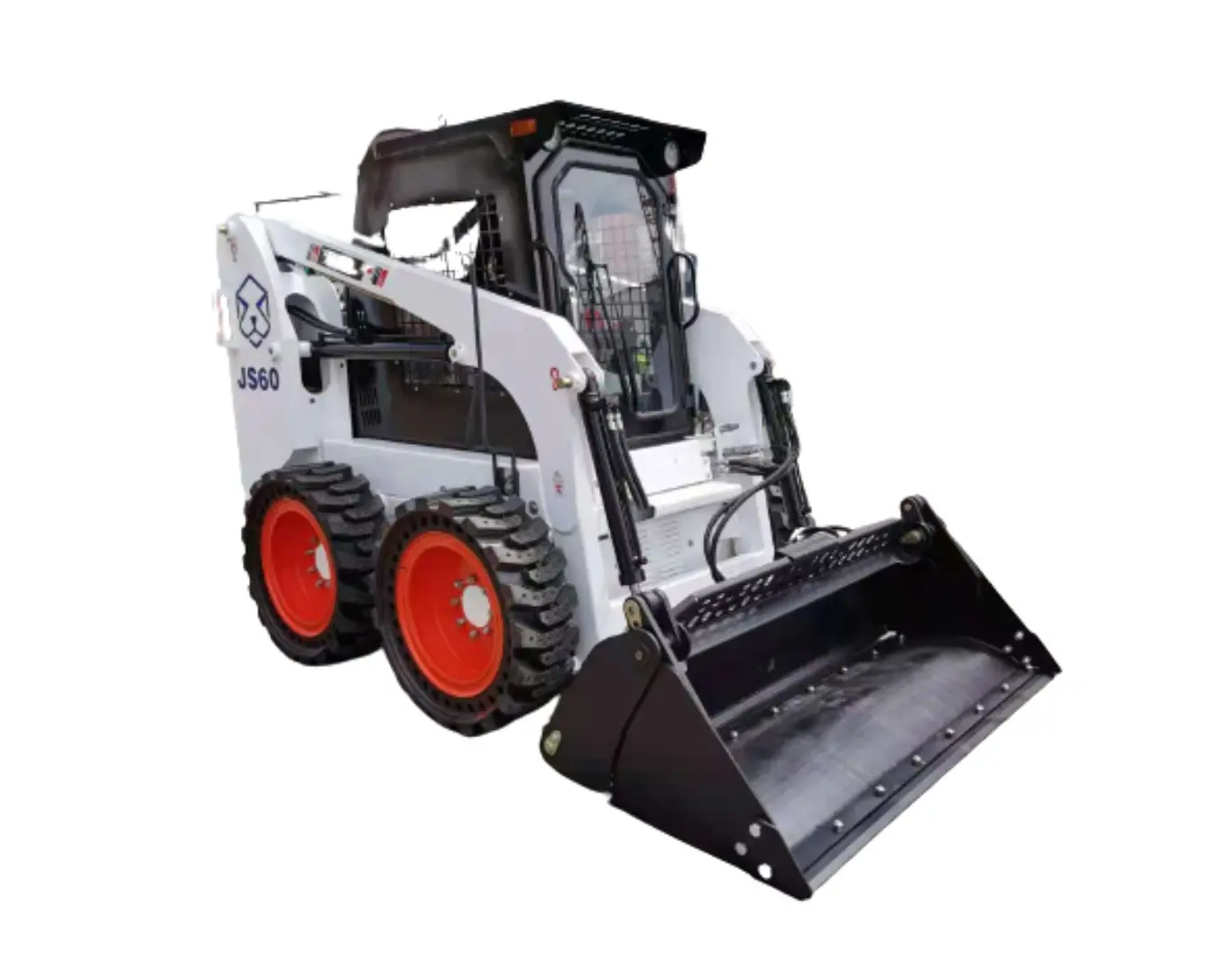

Model: Mini Skid Steer Loader-WINGS JS60
Total Weight: 3,200kg
Standard Bucket Capacity: 0.5m³
Engine: Xinchai diesel engine, 45kw
Reliable performance: All-wheel drive and advanced hydraulics ensure mobility, stability, and versatility in complex terrains.
Easy to operate: Compact design, intuitive controls. Novices can operate after brief training, reducing labor costs.

🏗️ Applications

✔ Urban utility work: Paving repairs and debris clearing in tight city alleys.

✔ Residential landscaping: Soil grading and material transport in backyard projects.

✔ Warehouse operations: Pallet handling and narrow-aisle material relocation.

📊 Main Parameters

Specification
Performance	Brand	-	WINGS
	Model	-	JS60
	Rated Operating Capacity	KG	850
	Tipping Load	KG	1700
	Bucket Capacity	m3	0.5
	Operating Weight	KG	3200
	Max. Travel Speed	km/h	12
	Hydraulic Pump Flow	L/min	75
	Fuel Tank Capacity	L	80
	Tires	-	12-16.5
	Overall Dimensions	mm	349018802160
Dimensions	Height At Maximum Extension	mm	4000
	Height To Bucket Hinge Pin	mm	3100
	Width With Bucket	mm	1880
	Track Width	mm	1500
	Wheelbase	mm	991
	Ground Clearance	mm	200
	Dump Angle	°	40°
	Dumping Height	mm	2400
	Maximum Reach	mm	750
Engine	Brand	-	Xinchai
	Model	-	498BPG
	Net Power	KW/rpm	45/2500
	Type	-	4 Cylinder in-line, Water cooled, 4 stroke
	Displacement	L	3.168

🌟 Why Choose This Solution?

Operational Versatility: Seamlessly transitions between buckets, augers, forks, and other attachments, excelling in farms, construction sites, and narrow urban alleys.
Reliable & Sturdy: Engineered with reinforced structures for sustained high-intensity cycles.
Rapid-Response Assurance: Global parts delivery across 30+ countries, backed by 24/7 technical guidance.
Cost-Smart Ownership: 12-month warranty + lifetime access to OEM-quality components at factory-direct pricing.

Command agility with JS60: The compact skid steer loader engineered for multi-attachment precision and space-defying productivity. Transform narrow worksites into power hubs.

❓ Frequently Asked Questions

Q1: What is the rated operating capacity of the JS60 skid steer? A: The JS60 features a rated operating capacity of 850kg, making it suitable for a wide range of material handling tasks.

Q2: What type of engine powers this machine? A: It is powered by a reliable Xinchai 498BPG diesel engine, providing 45KW of net power at 2500 rpm.

Q3: Is the JS60 suitable for narrow job sites? A: Yes, with a compact width of 1880mm and agile all-wheel drive, it is specifically engineered for narrow alleys, warehouses, and tight urban spaces.

Q4: What attachments can be used with this loader? A: The machine is highly versatile and can be equipped with standard buckets, augers, pallet forks, and other auxiliary hydraulic attachments.

Q5: What is the dumping height and maximum reach? A: The JS60 has a dumping height of 2400mm and a maximum reach of 750mm, allowing for efficient loading into trucks and containers.

Q6: What does the warranty cover? A: We provide a 12-month warranty along with lifetime access to OEM-quality components like hydraulic kits, hoses, and pins at factory pricing.
