Cheap WINGS JS100 - Wheeled Skid Steer Loader Manufacturer, Manufacturers

The JS100 skid steer boasts a 74.9kW Weichai engine and 1.2T payload, featuring 360Â° rotation, high-flow hydraulics, and cold-start capability. Its climate-controlled cab delivers unmatched precision for urban construction, road maintenance, and industrial material handling operations. Â

Send Inquiry

Product Description

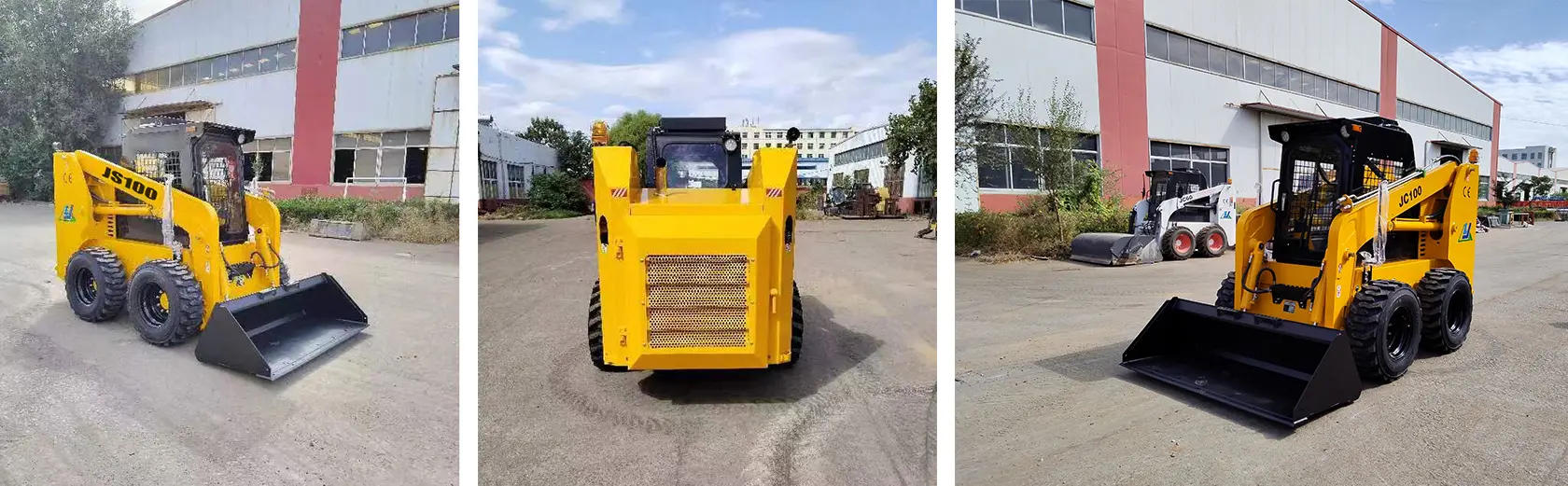

Key Features

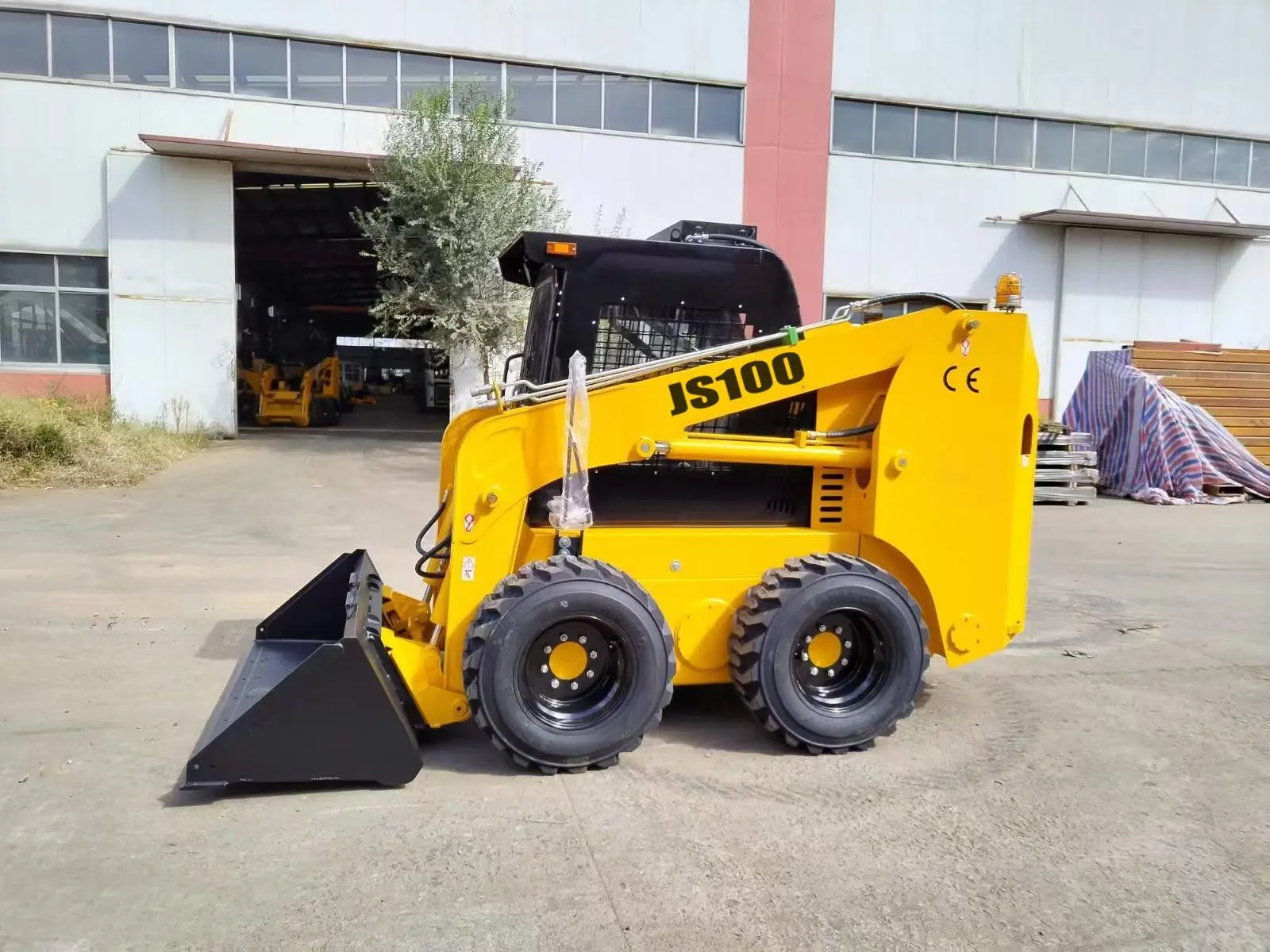

Model: JS100 (1.2T Wheeled Skid Steer Loader)

Total Weight: 3,600kg

Bucket Capacity: 0.55m³

Engine: Weichai WP4.1G engine, 74.9kw

Power System: Weichai WP4.1 turbo engine (74kW) with Rexroth dual-speed pump/motor ensures dynamic power adaptation.

Control Precision: Walvoil/Eaton pilot valves + Eurohydraulics multi-valve enable 0.3-second hydraulic response.

Industrial Applications

1 Material Handling in Mining

Handles rock fragments with reinforced bucket for continuous quarry operations.

2 Warehouse Logistics

Streamlines pallet loading/unloading at 150 units/hour with 270° visibility design.

3 Snow Removal

Equipped with a snow blade and low-temperature start-up features for extreme winter conditions.

Technical Specifications

Performance Parameter		Unit	Value
Performance	Model	-	JS100
	Rated Operating Capacity	KG	1200
	Tipping Load	KG	2400
	Bucket Capacity	m³	0.55
	Operating Weight	KG	3600
	Max. Travel Speed	km/h	12
Dimensions	Height At Max Extension	mm	4070
	Height To Bucket Hinge Pin	mm	3150
	Width With Bucket	mm	2030
	Wheelbase	mm	1020
	Dumping Height	mm	2450
Engine	Brand/Model	-	WEICHAI WP4.1G
	Net Power	KW/rpm	74.9/2200
	Displacement	L	4.1

Standard Configuration

✔ Luxurious Enclosed Cab
✔ Hydraulic Joystick Controls
✔ Standard Bucket
✔ Cold Weather Preheating Assist
✔ Auxiliary Hydraulic Couplers

Advantages of JS100

Operational Versatility: Seamlessly transitions between buckets, augers, forks, and other attachments, excelling in farms, construction sites, and narrow urban alleys.

Reliable & Sturdy: Engineered with reinforced structures for sustained high-intensity cycles.

Rapid-Response Assurance: Global parts delivery across 30+ countries, backed by 24/7 technical guidance.

Cost-Smart Ownership: 12-month warranty + lifetime access to OEM-quality components (pins, hoses, hydraulic kits) at factory-direct pricing.

Command agility with JS100, the compact skid steer loader engineered for multi-attachment precision and space-defying productivity. Transform narrow worksites into power hubs.

Frequently Asked Questions

What is the rated operating capacity of the JS100?

The JS100 wheeled skid steer loader has a rated operating capacity of 1,200kg and a tipping load of 2,400kg.

What kind of engine does this loader use?

It is powered by a Weichai WP4.1G turbo engine, providing a net power of 74.9kW at 2200rpm.

Can the loader operate in extremely cold climates?

Yes, it comes standard with a preheating assist system designed specifically for extreme cold weather and low-temperature start-ups.

Is the control system easy to use for precise work?

Absolutely. It features hydraulic joystick controls and Walvoil/Eaton pilot valves that enable a rapid 0.3-second hydraulic response.

What attachments can be used with the JS100?

The JS100 is highly versatile and can be equipped with various attachments including buckets, augers, forks, and snow blades via its auxiliary hydraulic couplers.

What is the warranty and parts support policy?

The machine comes with a 12-month warranty and lifetime access to OEM-quality components at factory-direct pricing, with global parts delivery support.
