China Crawler Excavator Operating Weight 23T

Discover WINGS medium-tonnage crawler excavator for sale, equipped with a luxurious enclosed cabin with air conditioning for ultimate comfort. Standard features include hydraulic pilot operation, quick-attach tools, high-flow hydraulic system, and a reliable imported Yanmar engine for exceptional performance. Perfect for versatile tasks!

Send Inquiry

Product Description

Key Features

■

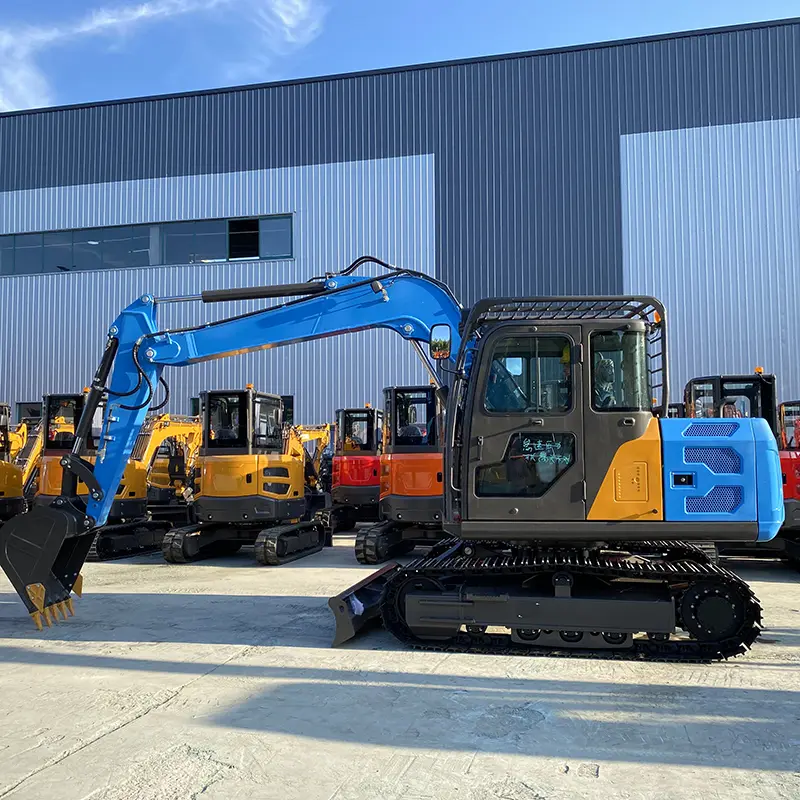

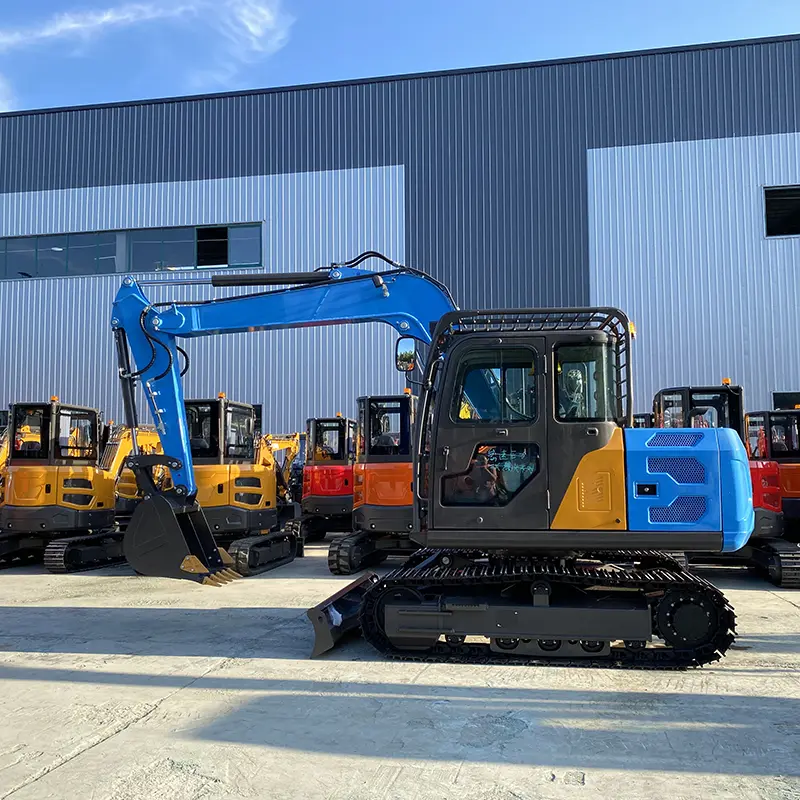

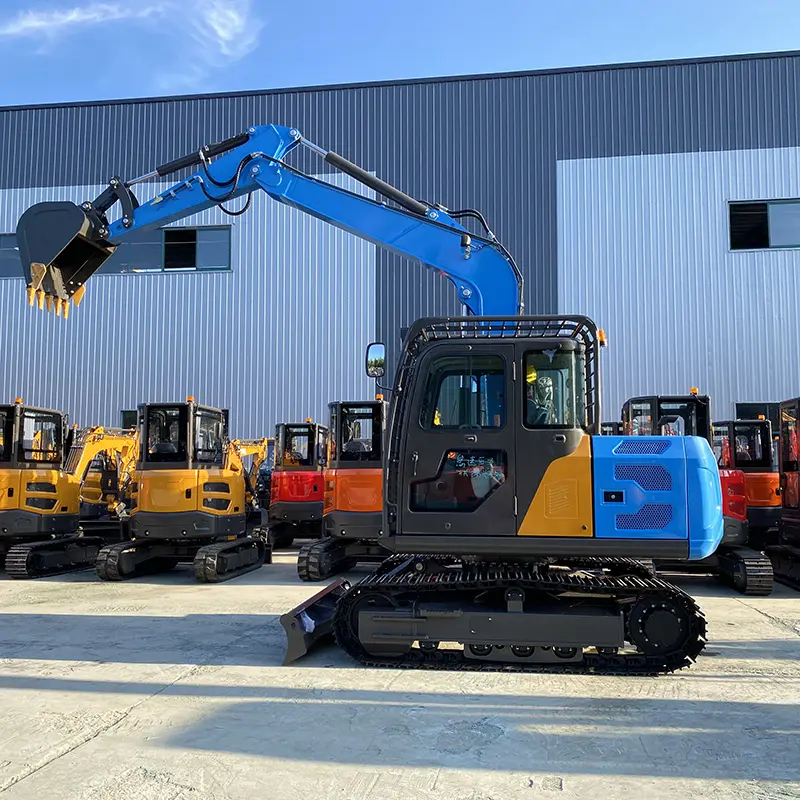

Model: Crawler Excavator-WINGS SH65/75.

■

Operating Weight: 6,500/7,500kg.

■

Product Type: Medium-sized model, enclosed cab.

■

Engine: Yanmar diesel engine (original import).

■

High-Flow Hydraulic System: A high-flow hydraulic system provides powerful and efficient performance for material handling, grading, and trenching.

■

Load-Sensing Control: The load-sensing control system adjusts hydraulic displacement to match load requirements, optimizing energy use and reducing fuel consumption.

Applications

✦

Construction Sites: Ideal for material handling, site preparation, and earthmoving tasks. Its compact design and powerful hydraulics make it suitable for confined spaces and heavy-duty operations.

✦

Municipal and Utility Work: Excellent for road maintenance, utility installation, and other municipal projects requiring precise and efficient performance.

✦

Forestry and Off-Road Applications: Its strong traction and stability allow it to perform well in forestry operations and challenging off-road conditions.

Main Parameters

Specification			SH65	SH75
Performance	Bucket Capacity	m³	0.21	0.28
	Total Weight	kg	6000	7500
	Swing Speed	rmp	0-11	0-11
	Gradeability	°	35	35
	Max. Bucket Digging Force	KN	48	56
	Max. Arm Digging Force	KN	35	38
	Engine Model	-	YANMAR 4TNV94L	YANMAR 4TNV98
	Power/Revolution Speed	KW/rmp	36.2	44.4
	System Pressure	MPa	28	27
	Tail Swing Radius	mm	1520	1730
Overall Dimensions & Working Range
Dimension	LWH	mm	5802x1960x2420	6054x2216x2672
Max. Digging Height	-	mm	5770	7023
Max. Dumping Height	-	mm	4075	5195
Max. Digging Depth	-	mm	3860	3898
Max. Digging Radius	-	mm	5898	6128

Why This Series Stands Out?

✔

Superior Stability on Any Terrain: Equipped with durable crawler tracks, these excavators provide excellent stability and traction, ensuring reliability on uneven, muddy, or rugged surfaces.

✔

Powerful Performance for Mid-Sized Projects: Designed for medium-duty projects, the SH65/75 series delivers a balanced combination of power and precision.

✔

Energy Efficiency with Cost Savings: Advanced hydraulic systems and fuel-efficient engines minimize operating costs while maintaining top performance.

The SH65/75 is engineered to tackle mid-size projects with ease and efficiency. Equipped with durable crawler tracks, the SH-Series guarantees stability and high performance on various challenging terrains. Perfect for construction, landscaping, or infrastructure projects, it remains a trusted partner for dependable and powerful excavation solutions.

Frequently Asked Questions

What type of engine is used in the SH65/75 models?

These excavators are equipped with original imported Yanmar diesel engines (4TNV94L for SH65 and 4TNV98 for SH75), known for their reliability and power.

How does the load-sensing control system improve performance?

The load-sensing system automatically adjusts hydraulic displacement to match the specific load requirements, which optimizes energy use and significantly reduces fuel consumption.

What are the operating weights of these crawler excavators?

The SH65 model has an operating weight of 6,500kg (total weight approx. 6,000kg), while the SH75 model has an operating weight of 7,500kg.

Is the cab enclosed or open?

Both the SH65 and SH75 models feature a fully enclosed cab, providing a safer and more comfortable environment for the operator during heavy-duty tasks.

Can these excavators work on muddy or uneven terrain?

Yes, the durable crawler tracks provide excellent traction and stability, making them ideal for muddy, rugged, or off-road conditions.

What industries are these models best suited for?

They are perfect for medium-sized construction projects, municipal road maintenance, utility installations, landscaping, and forestry operations.
