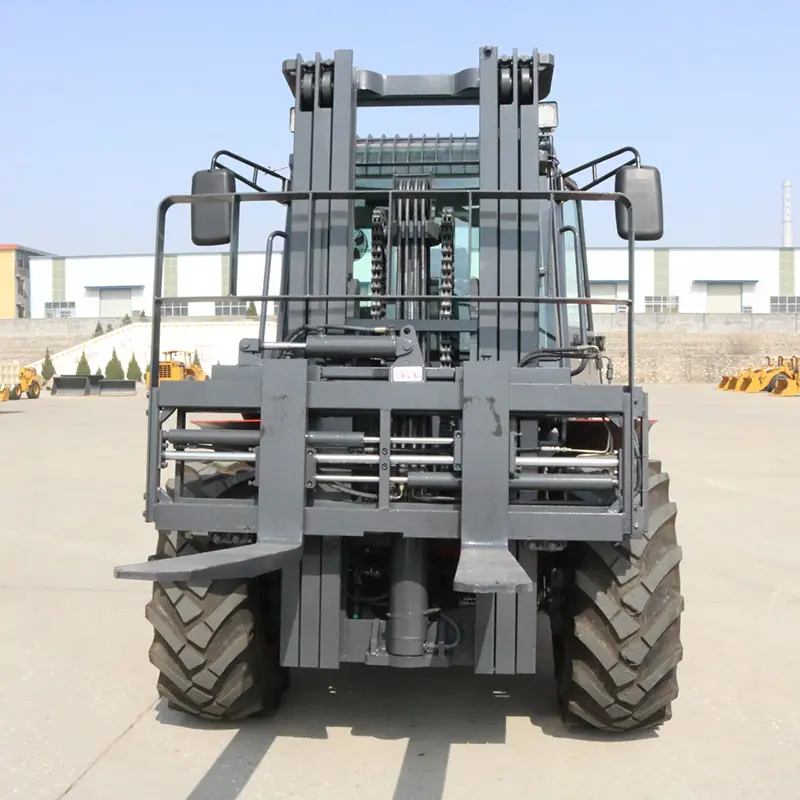

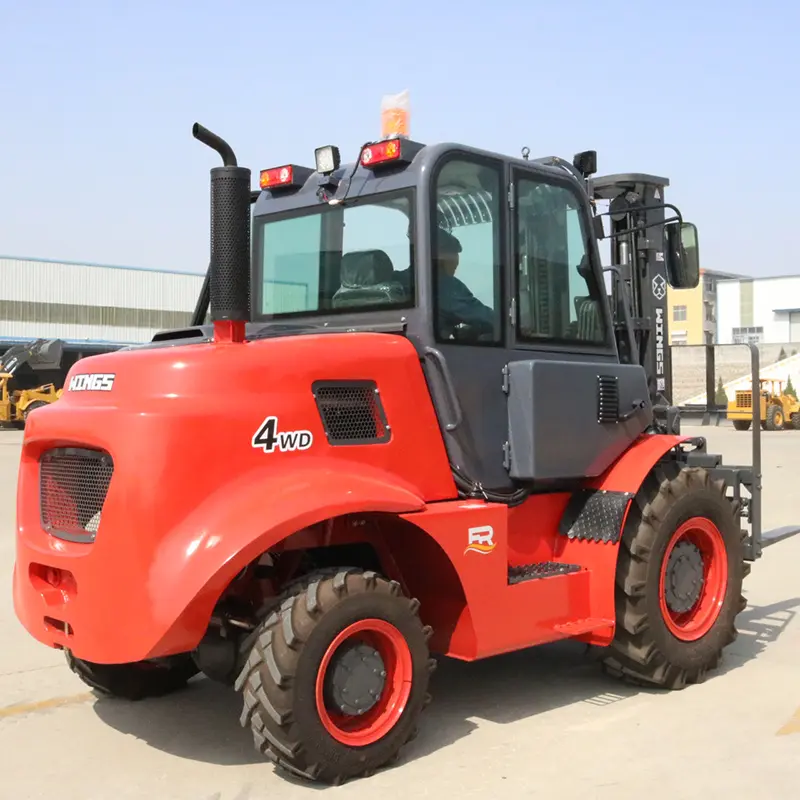

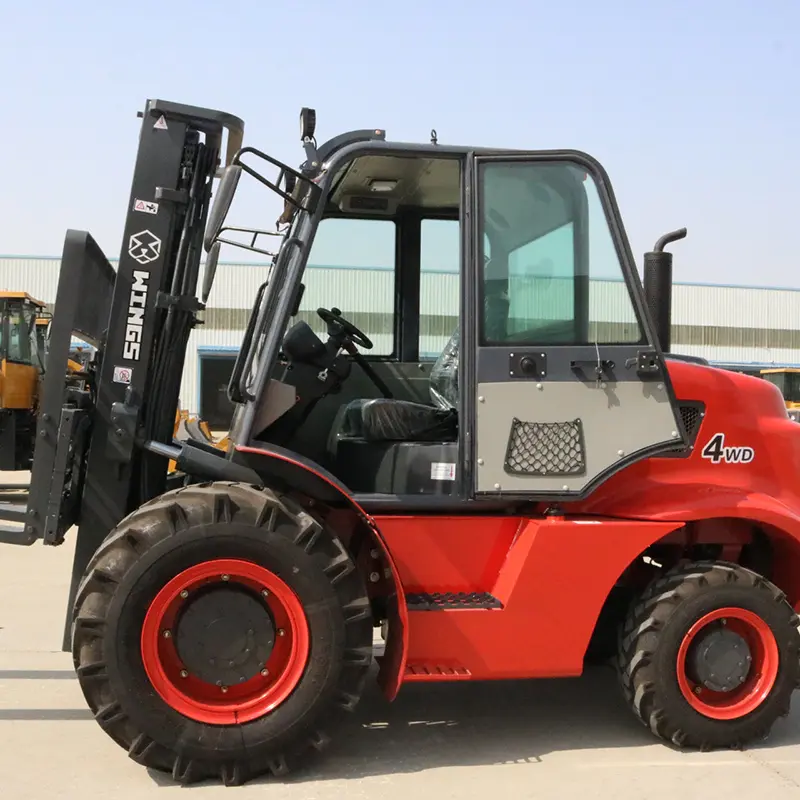

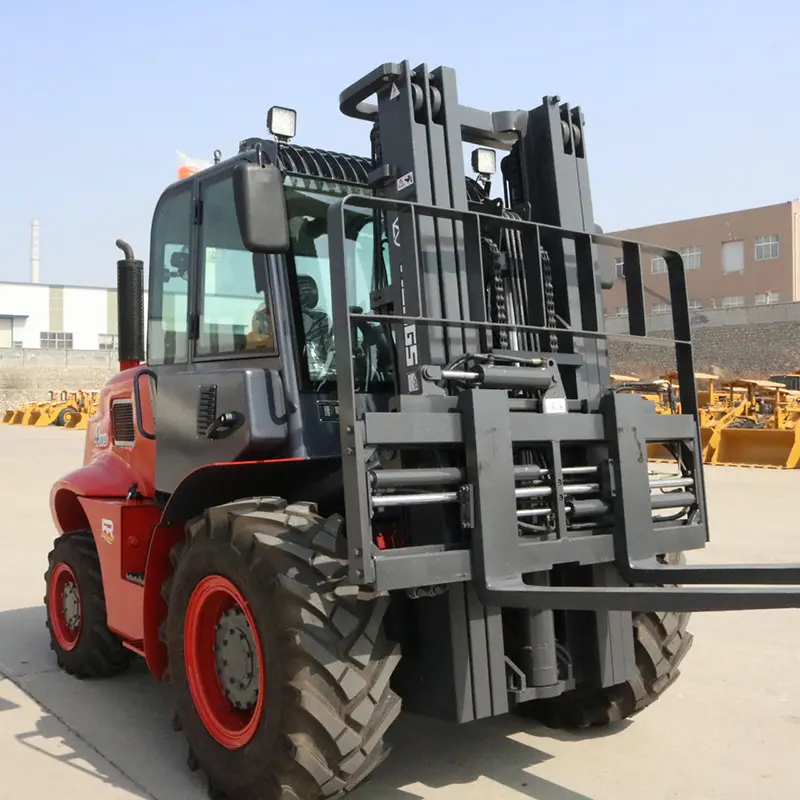

Cheap All Terrain Forklift with 5t Load Capacity Supplier, Factory

Looking for a tough buddy to conquer rough grounds? Meet the WINGS 5T Off-Road Forklift! Available in both 2WD and 4WD Forklift options, itâ€™s powered by a YUNNEI engine thatâ€™s as eco-friendly as it is powerful. With chunky deep-tread tires and a one-piece body, this Forklift Terrain master is built to handle the wildest conditions with stability and agility. Need versatility? Pair it with different attachments, and itâ€™ll tackle your work like a pro.

Send Inquiry

Product Description

Key Features

⚙️

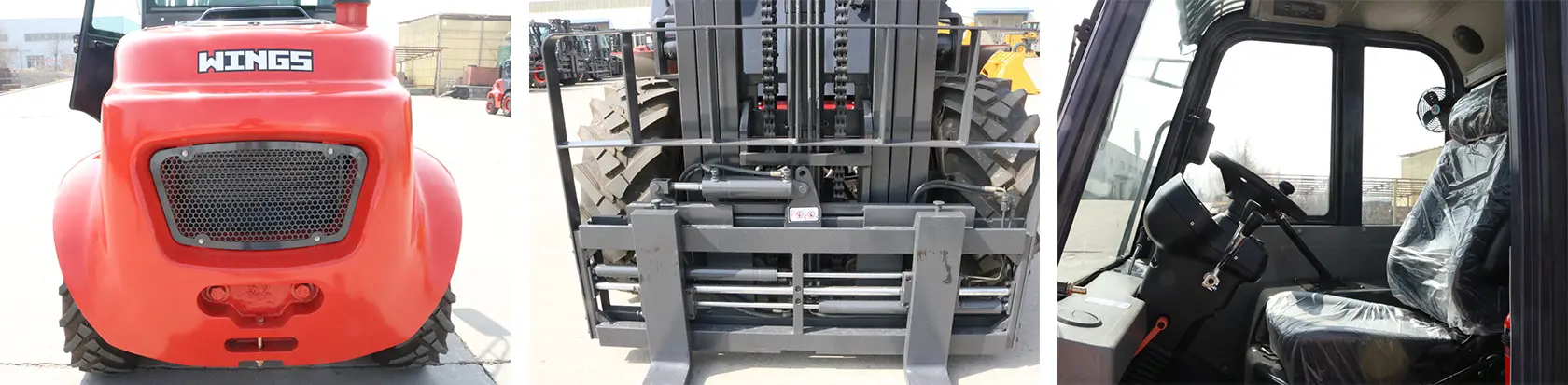

Model: Off Road Forklift-WINGS CPCY50 (Integrated structure)

⚖️

Load Capacity: 5000kg

🚀

Engine: Yunnei YN4EZ085-32CR, 65KW

⛰️

Off-Road Capability: Wheel-side reduction drive axle for superior durability.

🔄

Drive Modes: Switchable between 2WD and 4WD for optimized performance.

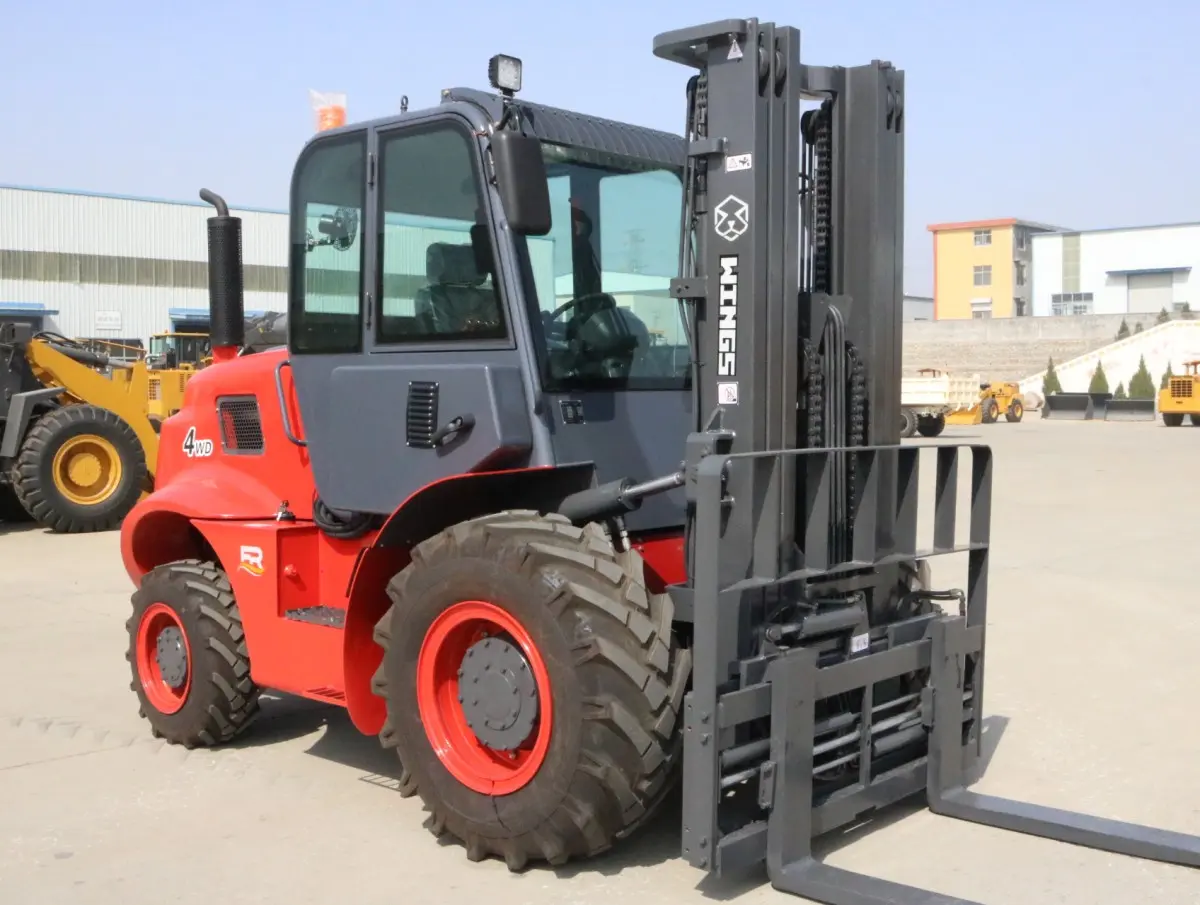

Applications

■

Forestry Operations: Ideal for loading timber and moving equipment on rugged forest roads with slopes and obstacles.

■

Emergency Rescue: Ideal for transporting supplies on damaged roads or operating in temporary sites during natural disasters.

■

Sandy/Desert Terrain: Wide tires reduce sinking risk, perfect for oil fields, mines, and deserts.

Main Parameters

Specifications
Performance
Rated capacity	5000 kg	Drive Type	2WD/4WD
Load Center	500 mm	Power Type	Diesel
Max. Lifting Speed	430 mm/s	Max. Driving Speed	32 km/h
Fork Lifting Height	3000 mm	Mast Tilting Angle	6/12°
Min. Turning Radius	3890 mm	Min. Ground Clearance	320 mm
Height to Overhead Guard	2450 mm	Wheel Base	1950 mm
Self-weight	7000/7200 kg	Standard Fork Length	1220 mm
Tires & Tread
Front Tread	1480 mm	Rear Tread	1380 mm
Front Tyre	16/70-20	Rear Tyre	10-16.5
Engine
Model	Yunnei	Rated Power	65 kw
Rated Speed	2400 rpm	Power Shift	Torque Converter
Dimensions
Total Length	2450 mm	Total Width	1860 mm
Total Height (Mast Lowered)	2557 mm

Why Choose Our Solutions?

✔ Industry Leadership: Decades of experience in material handling and construction machinery, offering innovative solutions for rough terrain.

✔ Reliable After-Sales Support: Comprehensive technical assistance, spare parts, and training to ensure long-term success.

✔ Proven Expertise: Built to handle the toughest off-road conditions with advanced technologies like wheel-side reduction and electric-controlled shifting.

Experience the dependability and efficiency of the CPCY50 All Terrain Forklift. Designed to boost productivity and adapt to a wide range of operational needs, it is the perfect choice to elevate your projects.

Frequently Asked Questions

1. What is the maximum load capacity of the CPCY50 forklift?

The CPCY50 has a rated load capacity of 5000kg, making it suitable for heavy-duty material handling.

2. Can this forklift switch between 2-wheel and 4-wheel drive?

Yes, it features switchable drive modes (2WD/4WD), allowing operators to optimize performance based on the specific terrain and job requirements.

3. What engine powers this all-terrain forklift?

It is equipped with a high-performance Yunnei YN4EZ085-32CR diesel engine, providing 65KW of power.

4. What is the standard lifting height?

The standard fork lifting height for this model is 3000mm.

5. Is it suitable for desert or sandy environments?

Absolutely. The forklift is designed with wide tires that reduce the risk of sinking, making it perfect for sandy or desert terrains often found in oil fields and mines.

6. What type of transmission does the CPCY50 use?

It utilizes a torque converter power shift type for smooth and efficient gear transitions in demanding environments.
